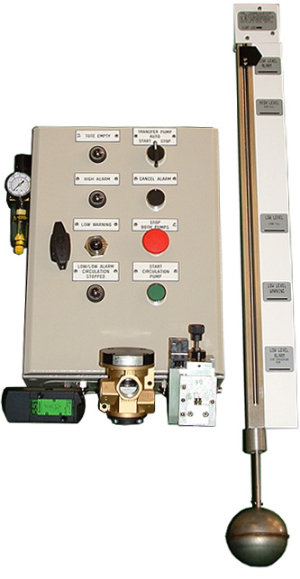

TANKICATOR® Visual Liquid Level Indicator

Using the same operating principle as the Pneumofloat, but offering a wider scope of signal options, the Tankicator is a vertical float valve that provides a clearly visual indication of liquid level.  Useful for more diverse applications, this versatile instrument can be used to produce output signals at multiple predetermined or designated liquid levels.  Every Tankicator is designed and built to fit the particular customer application, allowing for a wide range of criteria such as depth of tank or number of switch points required to be accommodated.

Able to be used in containers pressurised  to 2 bar. The magnetic valve mechanisms can be located and then configured as required to operate in Normally Open or Normally Closed configurations as required. The Tankicator can be linked to systems for pump control,high /low level alarms and duty / standby pump changeover

Tankicator Operating Principle

Similarly to the Pneumofloat, the Tankicator float follows the level of the liquid as it changes, the rod then moves against a Custom designed indicator board giving a visual confirmation of liquid level.  As the float magnets  move into the field of the valve magnets the valves trigger and the required pneumatic signals are generated.



  • Day Tanks
  • Fuel storage tanks
  • Sumps and bunds
  • Multiple liquid level signals or alarms
  • Pneumatic operation no electrical supply required.
  • 316 Stainless Steel for all wetted parts
  • Easy to install and maintain.
  • Simple to install
  • Available in lengths from XXmm to XXXXmm
  • Operating Inlet Pressure Max 6 bar
  • Magnetically operated Valves can be tailored to customer requirements
  • Operating temperature 0 to +50°C
  • Alternative Polypropylene float available
  • Resistant to attack from marine and corrosive industrial atmospheres
  • Corrosion resistance to many different liquids from complex sulphur chemicals to solvents, paints, inks, food products, rain water, leachate and many more
  • Car Manufacture Paint Plants
  • Printing  Industry for ink, varnish and solvent
  • Food Production
  • Petrol / Chemical
  • Environmental Landfill Leachate run-off tanks
  • Anywhere a liquid level needs to be monitored

ATEX approved for use in      εx       II 2 G c T6 Environments
