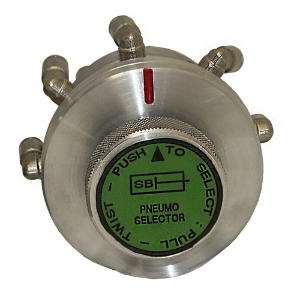

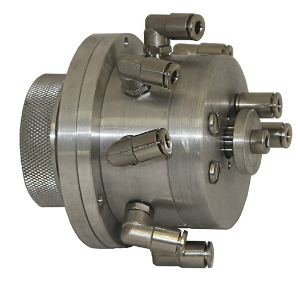

PNEUMOSELECTOR® Rotary Select Valve

Operating Principle

The Pneumoselect is a Rotary Switch that has a unique “Pull-Twist-Push” mechanism that eliminates the unwanted signals that normally occur with a rotary valve as the head rotated from one selection to the other.

The operating head of the Pneumoselect is pulled out clear of the individual valves as the head is rotated; therefore no unwanted signals are produced. Once the required position is reached the head is pushed home to give the output signal.

  • Colour change systems on spray plants
  • Product selection on mixing systems
  • Selection of production process
  • Available in 4, 6 and 8 way options with normally open or normally closed valves
  • Panel mounting through 60mm Diameter hole
  • Operating pressure 2-8 bar
  • Common air supply
  • Aluminium for corrosion protection
  • 4mm Push Fit connections

Custom options

  • Individual air supplies to valves
  • Normally Open or Normally Closed Valves
  • A combination of some Normally Open and some Normally Closed to suit your application
  • Pneumatic lock shut-off feature to avoid unwanted rotation
  • Printing
  • Packaging
  • Material & Fluid Handling
  • Food & Beverage
  • Automation
  • Medical
  • Not currently ATEX rated
