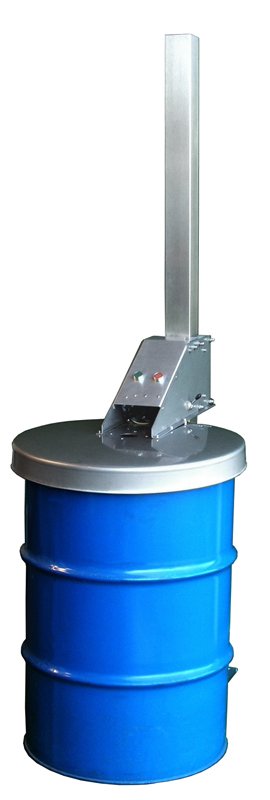

PNEUMOLIFT® Pneumatic Agitator Lift

The Pneumolift is a pneumatically powered lifting mechanism that takes the manual lifting element out of loading an Agitator onto an open drum, for mixing.  Used extensively in the solvent and water-borne paint, varnish and ink industries.

Operating Principle

Powered exclusively by compressed air, the Pneumolift is engineered with safety in mind as it eliminates the manual handling element of loading the agitator into the drum.  An automatic cut-out, only allows the agitator to run when the Pneumolift is in the down position.  The Pneumolift can be supplied complete with Agitator and a control system that will provide timed agitation.



  • Automated lifting for blending agitators
  • 316 Stainless Steel corrosion resistant construction
  • Pneumatic lifting mechanism
  • Suitable for drums up to 205Ltr
  • Raise / Descend height distance to suit customers drum size
  • Integral Lid for protection from splatter with solvent based products
  • Lift / Lower speed adjustable
  • Floor or Platform mounting
  • Common air supply with Agitator
  • Customisable Raise/Lower height
  • Customisable to suit any drum / vat / hopper size
  • Automatic timer-controlled option available
  • Diaphragm Pump elevator with pick up tube
  • Printing
  • Packaging
  • Material & Fluid Handling
  • Food & Beverage
  • Medical
